HIKVISION

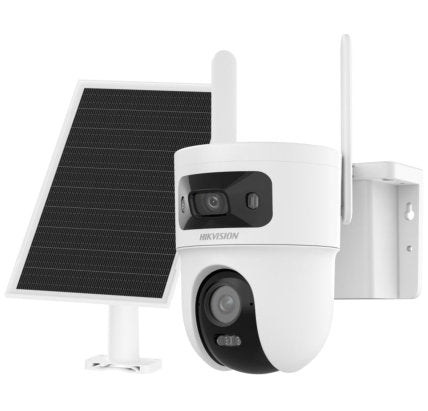

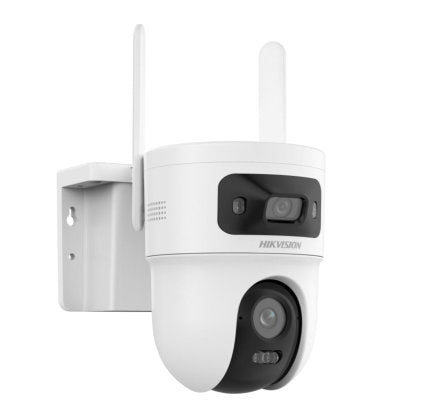

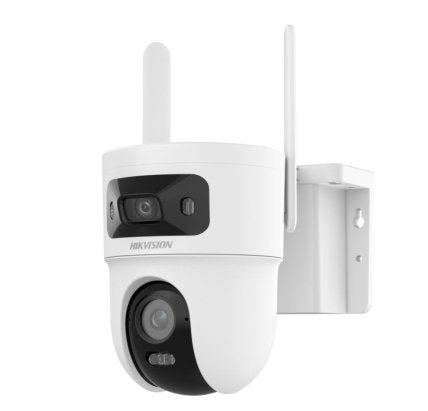

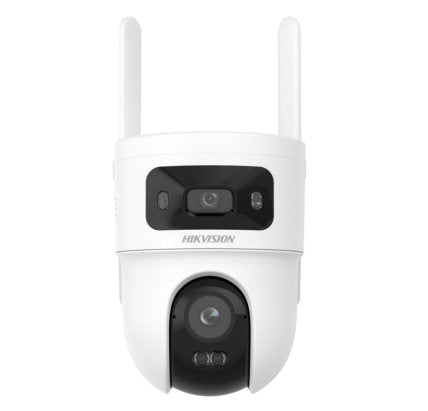

HIKVISION 4G SOLAR CAMERA DS-2CFSP8-D/4G 2.8+4MM
HIKVISION 4G SOLAR CAMERA DS-2CFSP8-D/4G 2.8+4MM
SKU:
In stock
Couldn't load pickup availability
Share
Key Features
Support AOV Mode: 24/7 video recording
8 W solar panel and 9000 mAh battery
Support 4G LTE data transmission
Smart Hybrid Light: 30 m white light and IR
Built-in microphone and speaker, support two-way audio
Smart Tracking: PT Camera achieves person tracking with Motion Detection 2.0
Panoramic Details: Wide-angle lens for background information, specific lens for close-up details
Motion Detection 2.0: Support person and vehicle detection
Specifications
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
Shutter Time1 s to 1/100,000
Day & NightIR cut filter
Angle AdjustmentPan: -170° to 170°,tilt: 0° to 80°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°
4 mm, horizontal FOV 78.8°, vertical FOV 42.3°, diagonal FOV 93.4°
-
Lens Type
Fixed focal lens
Bullet channel: 2.8 mm
PT channel: 4 mm
- ApertureF1.6
- Lens MountM12
- Iris TypeFixed
- DORI
-
DORI
Bullet channel: 2.8 mm D: 61 m, O: 24 m, R: 12 m, I: 6 m
PT channel: 4 mm D: 82 m, O: 32 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Video
-
Main Stream
Bullet channel 1:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
PT channel 2:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
-
Sub Stream
Bullet channel 1:
50 Hz: 12.5 fps (768 × 432)
60 Hz: 15 fps (768 × 432)
PT channel 2:
50 Hz: 12.5 fps (768 × 432)
60 Hz: 15 fps (768 × 432)
-
Video Compression
Main stream: H.265,
Sub-stream: H.265
- Video Bit Rate32 Kbps to 8 Mbps
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Audio
- Audio CompressionG.711ulaw
- Audio Bit Rate64 Kbps(G.711ulaw)
- Audio Sampling Rate8 kHz
- Environment Noise FilteringYes
- Network
- Simultaneous Live ViewUp to 6 channels
- APISDK
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientHik-Connect
- Mobile Communication
- StandardLTE-FDD
-
Frequency
EU:LTE-FDD: B1/3/5/7/8/20/28
LA:LTE-FDD: B2/3/4/5/7/8/28/66
- Uplink and Downlink Data RateCat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
- SIM Card TypeNano SIM
- Image
- Image Settingsbrightness,contrast,white balance,saturation,sharpness
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Wide Dynamic Range (WDR)Digital WDR
- Interface
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Reset KeyYes
- Built-in SpeakerYes, 1 built-in speaker
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle))
- Linkagenotify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card
- General
- Power12 V, 1.5 A, max. 18 W
- MaterialPlastic
- DimensionØ110.9 mm × 145.4 mm (Ø4.37" × 5.72")
- Package Dimension322 mm × 197 mm × 210 mm (12.68" × 7.76" × 8.27")
- Approx. 1560 g (3.44 lb.)
- With Package WeightApprox. 2180 g (4.81 lb.)
- Startup and Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
- General FunctionMirror,flash log
- Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 70% or less (non-condensing)
- Flashing LightNA
- Battery
- Battery TypeLithium
- Capacity9000 mAh
- Max. Charging Voltage8.4 V
- Battery Voltage6 V to 8.4 V
-
Operating Temperature
Charging: 0 °C to 45 °C (32 °F to 113 °F)
Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
- Cycle LifetimeCap(800th) ≥ 80%
- Battery WeightApprox. 170 g (0.37 lb.)
- Approval
- RFEN IEC 62311:2020, ETSI EN 301 489-17 V3.3.1, ETSI EN 301 908-1 V15.2.1, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 908-13 V13.2.1
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
-
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Solar Power
- Solar Panel TypeMonocrystalline silicon solar panel
- Power Consumption8 W
-
Solar Panel Dimensions & Weight
Dimensions: 263.8 mm × 171.7 mm × 18.5 mm (10.39" × 6.76\" × 0.73\")
Weight: 450 g (0.99 lb.)
- Working Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- ProtectionIP65
