LG ARTCOOL Inverter AC, 2.0HP, Ioniser, Smart Diagnosis, Dual Inverter Compressor

Product Description

CARBON TRUST (UK)

The carbon footprint of this product has been measured and certified by the CarbonTrust

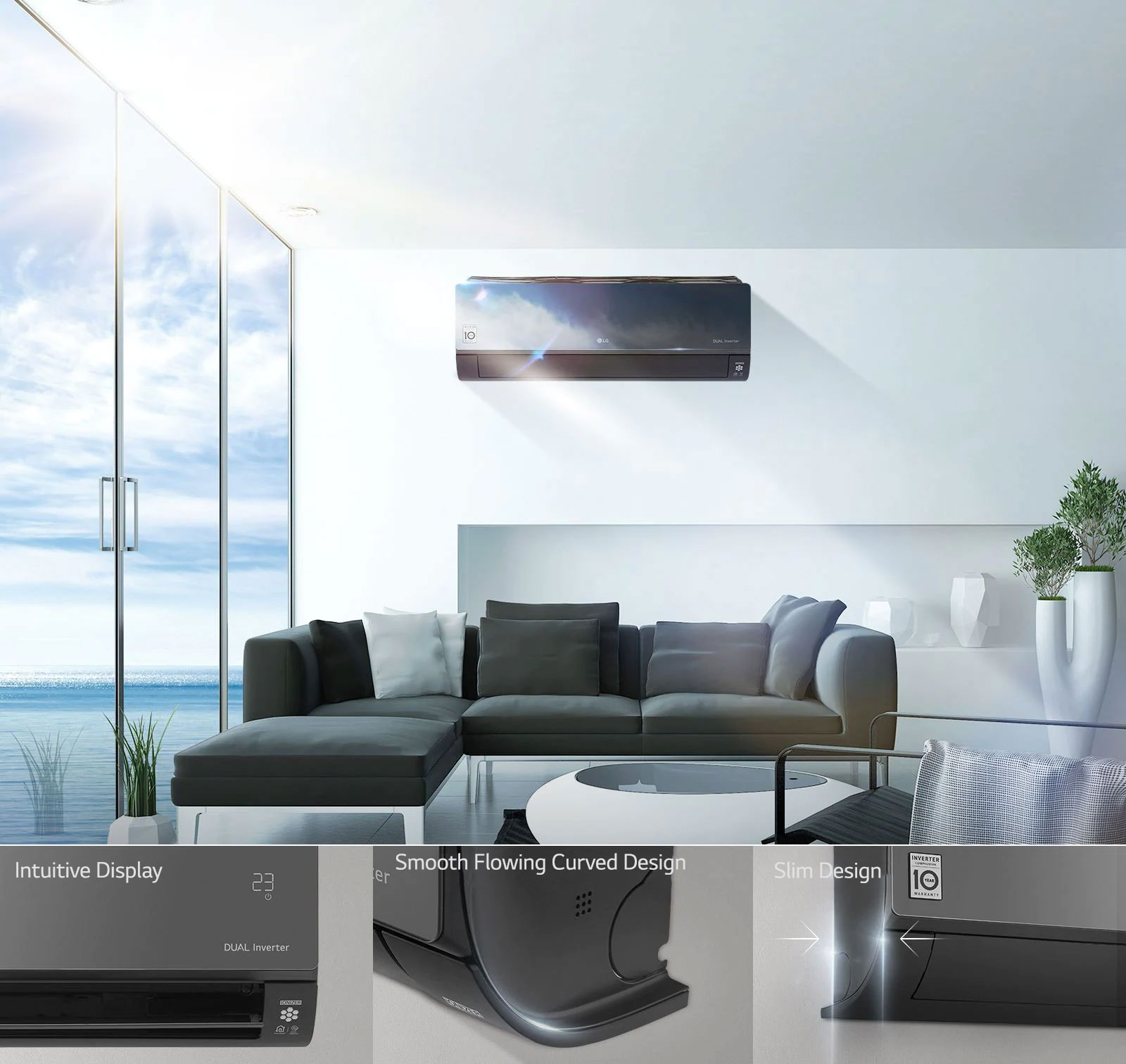

Stylish ARTCOOL Design

The LG ARTCOOL air conditioner is designed to be harmonized with the interior of your home with minimal and basic style. The mirror glass on the front of the product reflects the surrounding environment to emphasize the interior and the integrity, and it delivers timeless beauty through the solidity of the glass material.

*The actual product image may differ from the image shown above.

Inverter Compressor With 10 Year Warranty

LG's Inverter Compressor solves improper, ineffective and noise problems, resulting in an air conditioner that cools faster, lasts longer, and runs quieter. With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.

10 Year Warranty

Verification obtained from TUV Rheinland for 10-year product life cycle.
TUV Rheinland

TUV Rheinland, Long Term Accelerated-reliability Test & High Marginal Test.

Energy Saving & Fast Cooling

Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, Inverter Compressor with power saving operation range frequency saves more energy than conventional compressor. Thanks to the Inverter Compressor, air is expelled farther and faster.

SEE VIDEO SEE VIDEO

Active Energy Control

Active Energy Control function allows you to select the level of energy consumption depending on the situation. Enjoy a cool and comfortable atmosphere with saving energy.

Ionizer

Over 3 million lons sterilize not only the air going through the air conditioner, but also harmful substances and odours surrounding the unit. Ionizer has been proven to sterilize over 99% of adhering bacteria within 60 minutes. (Sterilize Escherichia coli over 99.9% in 30 min and Staphylococcus aureus over 99.6% in 60 min)

*The test was performed by INTERTEK ETL SEMKO Korea Ltd. (Test report No.: IF13-RE00573).
*Test chamber size : 52m³ volume.
*Test results may differ from results in actual room conditions.

Access your air conditioner at anytime and from anywhere with a Wi-Fi equipped device and LG's exclusive home appliances control app.

Smart Diagnosis

Smart Diagnosis allows users to conveniently check setup, installation, troubleshooting and other information directly from a smartphone.

Low Noise

LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Inverter Compressor which eliminate unnecessary noise and allow for smooth operation.

*Test Condition: LG Internal Test.

Quick and Easy Installation

LG air conditioners are designed for easier and more efficient installation, regardless of the surroundings and the number of persons involved in the installation process. By reducing the manpower and time required for installation, it is now possible to install more air conditioners at more homes in a shorter period of time.

Jet Cool

The optimized design of the air outlet provides more powerful airflow, which cools the room quickly.
Auto Cleaning

The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

Micro Dust Filter

The Micro Dust Filter captures and eliminates harmful micro-particles, including bacteria and dust, in order to deliver fresh, clean air.
Vertical 6 Steps Louver

Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

4 Way Swing

LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many directions.
Gold Fin^TM

The Gold Fin^TM ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

Comfort Sleep

Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic),with one click.
DUAL Protection Filter

The DUAL Protection Filter captures dust size over 10?.

Specification

CAPACITY 2HP
DIMENSIONS (W X H X D)998 x 345 x 212
COMPRESSOR Dual Inverter
FEATURE Ionizer

BASIC SPEC

Type Wall Mount

Color Black
Smart Function

ThinQ™

CAPACITY

Cooling-Min (kW) 0.95

Cooling-Rated (kW) 5.28
Cooling-Max (kW) 5.84

Cooling-Min (Btu/h) 3,250
Cooling-Rated (Btu/h)18,000

Cooling-Max (Btu/h)19,910

POWER INPUT

Cooling-Min (W)300

Cooling-Rated (W) 1,640
Cooling-Max (W)1,850

RUNNING CURRENT

Cooling-Min (A) 1.90

Cooling-Rated (A) 7.60
Cooling-Max (A) 8.90

EER

EER(W/W)3.22

EER ((Btu/h)/W) 10.98

POWER SUPPLY

Power Supply (Ø , V , Hz) 1, 220 ~ 240, 50

AVAILABLE VOLTAGE RANGE

Available Voltage Range (V) 187 ~ 276

POWER FACTOR

Cooling (%) 95.2

MOISTURE REMOVAL

Moisture Removal (l/h) 1.30

INDOOR

Air Flow Rate - Cooling, Max / H / M / L (㎥/min) 18/12.7/10.2/8.4

Sound Pressure Level - Cooling, Max / H / M / L / SL (dB(A)) 45/40/37/32
Dimensions (W × H × D) - Net (mm) 998 × 345 × 212

Dimensions (W × H × D) - Shipping (mm) 1085 × 427 × 286
Weight - Net (kg) 12.6

Weight - Shipping (kg) 16.2
Exterior Color Code

Munsell 7.5PB 0.2/20 (RAL 9005)

OUTDOOR

Air Flow Rate - Max (㎥/min) 38.0

Fan Motor Speed - Cooling, Min ~ Max (rpm) 650~900
Sound Pressure Level - Cooling, Rated (dB(A)) 54

Dimensions (W × H × D) - Net (mm) 770 x 545 x 288
Dimensions (W × H × D) - Shipping (mm) 920 x 593 x 388

Weight - Net (kg) 32.8
Weight - Shipping (kg) 35.2

Max. Fuse Size (A)15
Exterior Color Code Munsell 9.54Y 8.34/1.31 (RAL 9001)

Operation Range - Cooling (℃ DB) 18 ~ 48

CIRCUIT BREAKER

Circuit Breaker (A) 20

POWER SUPPLY CABLE

Power Supply Cable (No. × ㎟)3 × 1.5

POWER SUPPLY TO UNIT

Power Supply to Unit Indoor

POWER AND COMMUNICATION CABLE

Power and Communication Cable (No. × ㎟) 4 x 1.5

PIPING

Size - Liquid (mm) Ø 6.35

Size - Gas (mm) Ø 12.7
Connections Method - Indoor / Outdoor

Flared/Flared

DRAIN HOSE SIZE

Drain Hose Size - O.D, I.D (mm) 21.5,16.0

BETWEEN INDOOR & OUTDOOR

Piping Length - Min / Standard / Max (m) 3/7.5/20

Piping Length - No Charge (m)7.5
Max. Elevation Difference (m) 15

Piping Connection Heat Insulation Both liquid and gas pipes

REFRIGERANT

Type R410A

Pre Charge (g) 1,150
Additional Charge (g/m)20

Control Capillary
Global Warning Potential 2087.5

t-CO₂ eq 2.401

TOOL CODE(CHASSIS)

Indoor / Outdoor SK/UL2

COMPRESSOR

Type Twin Rotary

Model GAT156MAD
Motor Type BLDC

Oil Type / Maker POE (RB68A)/Sun Oil or Jx Nippon

Oil Charge 400

FAN(INDOOR)

Type Cross Flow Fan

Motor Output- W 30

FAN(OUTDOOR)

Type Propeller Fan

Motor Type BLDC
Motor Output- W 43

Motor Insulation Class E
Motor Enclosure / Ingress Protection TEAO/IPX4

HEAT EXCHANGER

Evaporator - Material, Tube / Fin Cu/Al

Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty (1) (ø7 x 2 x 16 x 20 x 744) x 1
Evaporator - Corrosion Protection PCM

Condenser - Material, Tube / Fin

Cu/Al
Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty (1) (ø7 x 2 x 24 x 18 x 823) x 1

Condenser - Corrosion Protection Gold
